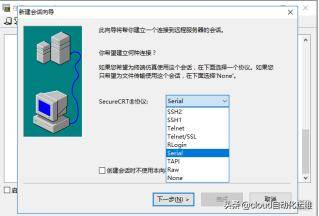

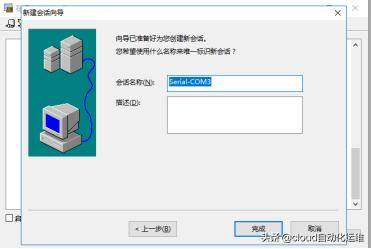

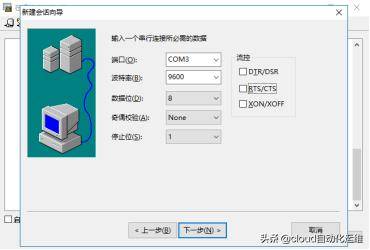

不管是运维实施部署也好,还是网路工程师也好,交换机的配置可能是家常便饭,在工作中你是搞运维的,会配置交换机也是一个炫耀的加分项哦!下面我们就拿H3C的交换机配置,做一个介绍吧!主要讲解交换机的连接,登陆,配置vlan,划分网口access或者trunk,查看配置状态等!

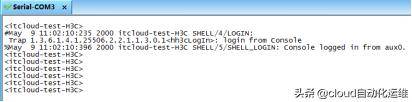

system-view
System View: return to User View with Ctrl+Z.
[itcloud-test-H3C]display vlan
Total 23 VLAN exist(s). The following VLANs exist: 1(default), 10, 13-15, 21, 25, 30, 66, 68, 106, 108-110, 120-122, 124-125, 135, 222, 500-501,
[itcloud-test-H3C]vlan 123
[itcloud-test-H3C-vlan123]quit
[itcloud-test-H3C]display vlan
Total 24 VLAN exist(s). The following VLANs exist: 1(default), 10, 13-15, 21, 25, 30, 66, 68, 106, 108-110, 120-125, 135, 222, 500-501,
[itcloud-test-H3C]interface GigabitEthernet1/0/3
[itcloud-test-H3C-GigabitEthernet1/0/3]port link-type access
[itcloud-test-H3C-GigabitEthernet1/0/3]port access vlan 123
[itcloud-test-H3C-GigabitEthernet1/0/3]quit
[itcloud-test-H3C]display interface brief
The brief information of interface(s) under route mode:Link: ADM - administratively down; Stby - standbyProtocol: (s) - spoofingInterface Link P
